Magic Table

Interact with the digital world using everyday objects

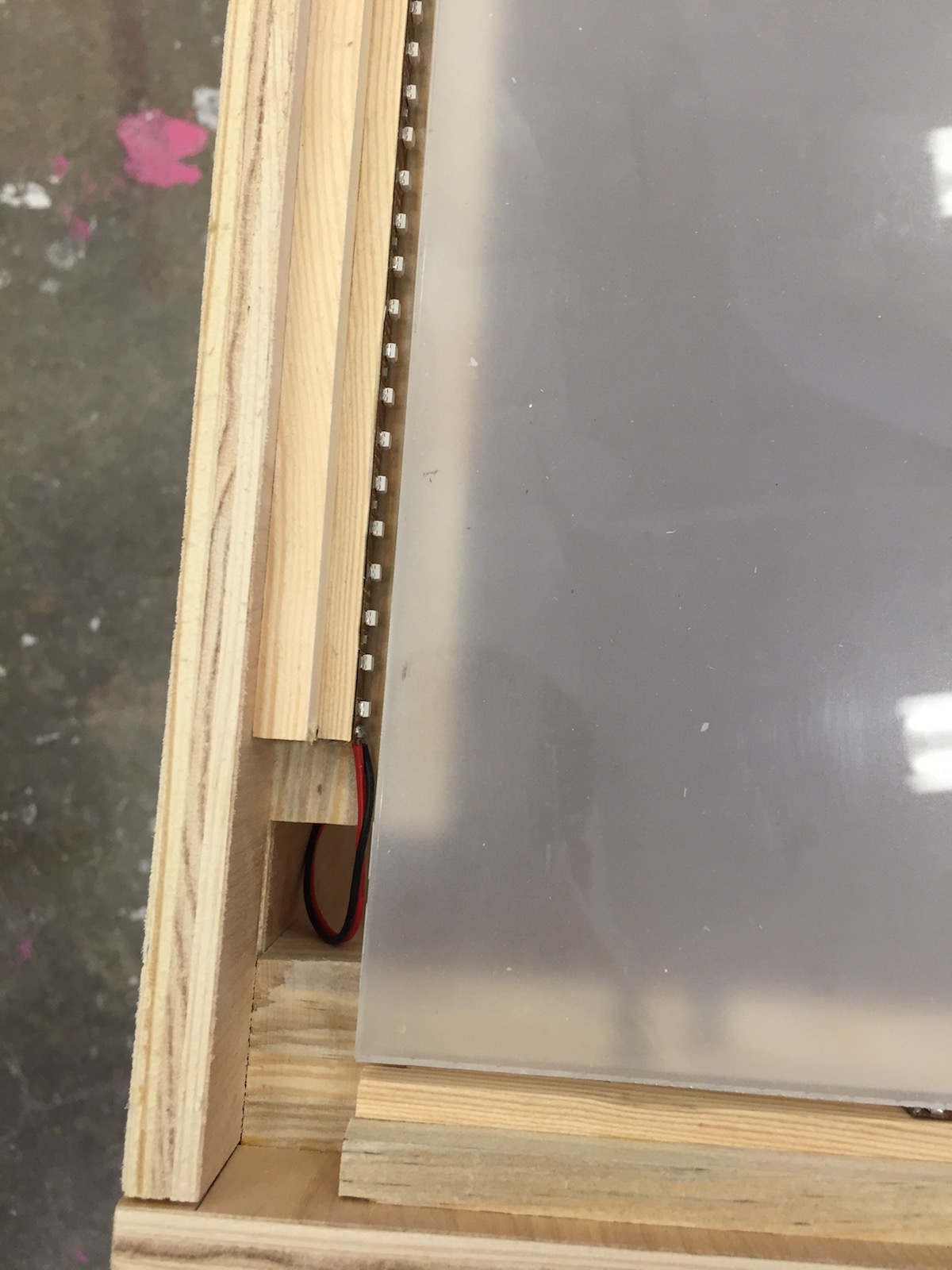

Magic Table is aiming for creating an easy-to-use prototype platform for tabletop interaction. It can sense multiple touch inputs as well as fiducial markers for object tracking. The user can also use speech command to interact with it. The method I chose here is called Diffused Surface Illumination (DSI). It puts the infrared(IR) LED strip on the side of the acrylic to illuminate the whole surface; therefore, the IR camera underneath can see the surface clearly without being affect by the projection on the surface.

Applications using Magic Table

Material and Equipments

The material and equipments I used for the table contains:

• ACRYLITE LED (EndLighten) Colorless 0E011 acrylic sheet
• Infrared LED Strip
• 110V to 12V DC Regulator
• 0.5” & 0.25” plywood
• 0.25” pegboard
• Foamcore board
• Microsoft Kinect (For IR camera only)
• AAXA P700 Pico Projector (Some of the photos below were using AAXA ST200)

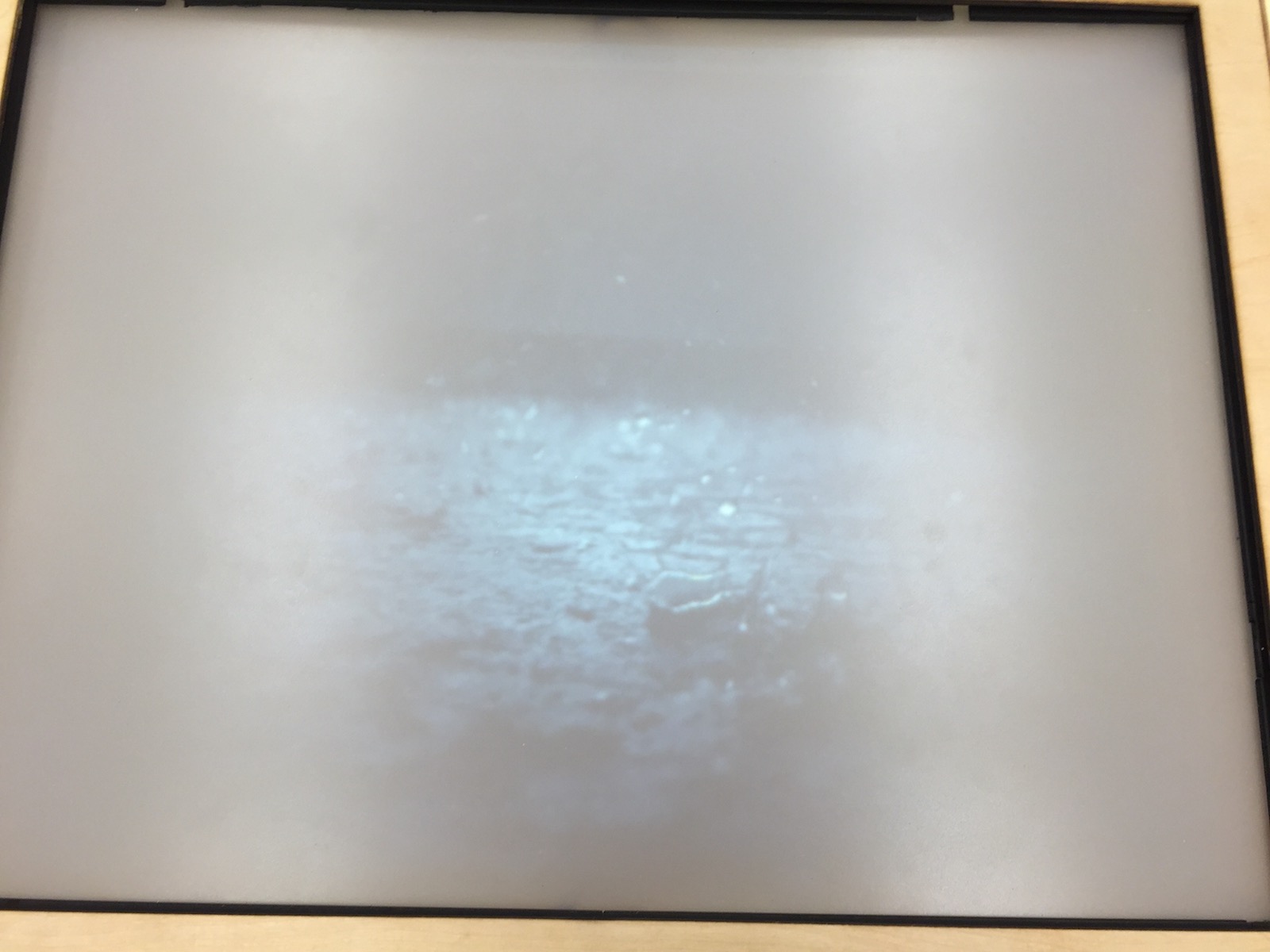

All of the wood boards are just for making the structure of the table, it can be replaced with any other material. ACRYLITE LED acrylic sheet lets the IR LED’s light diffused nicely across the whole surface. ACRYLITE Satinice acrylic sheet is a frosted surface for projection, it can be replaced with any similar material. Kinect in this project is just serving as an IR camera, and it would be a lot easier if just using a normal IR camera than Kinect. ST200 is a short throw pico projector, it can project a 30” screen size (diagonal) in around 30” distance. If the projector has smaller throw rate, you can use a mirror to increase the projector distance without increases the table size, which I did after I replace the projector to P700. The ST200 has only 150 lumens, so the projection is pretty dim and requires a dark room to see the projection clearly. P700 does not have the problem.

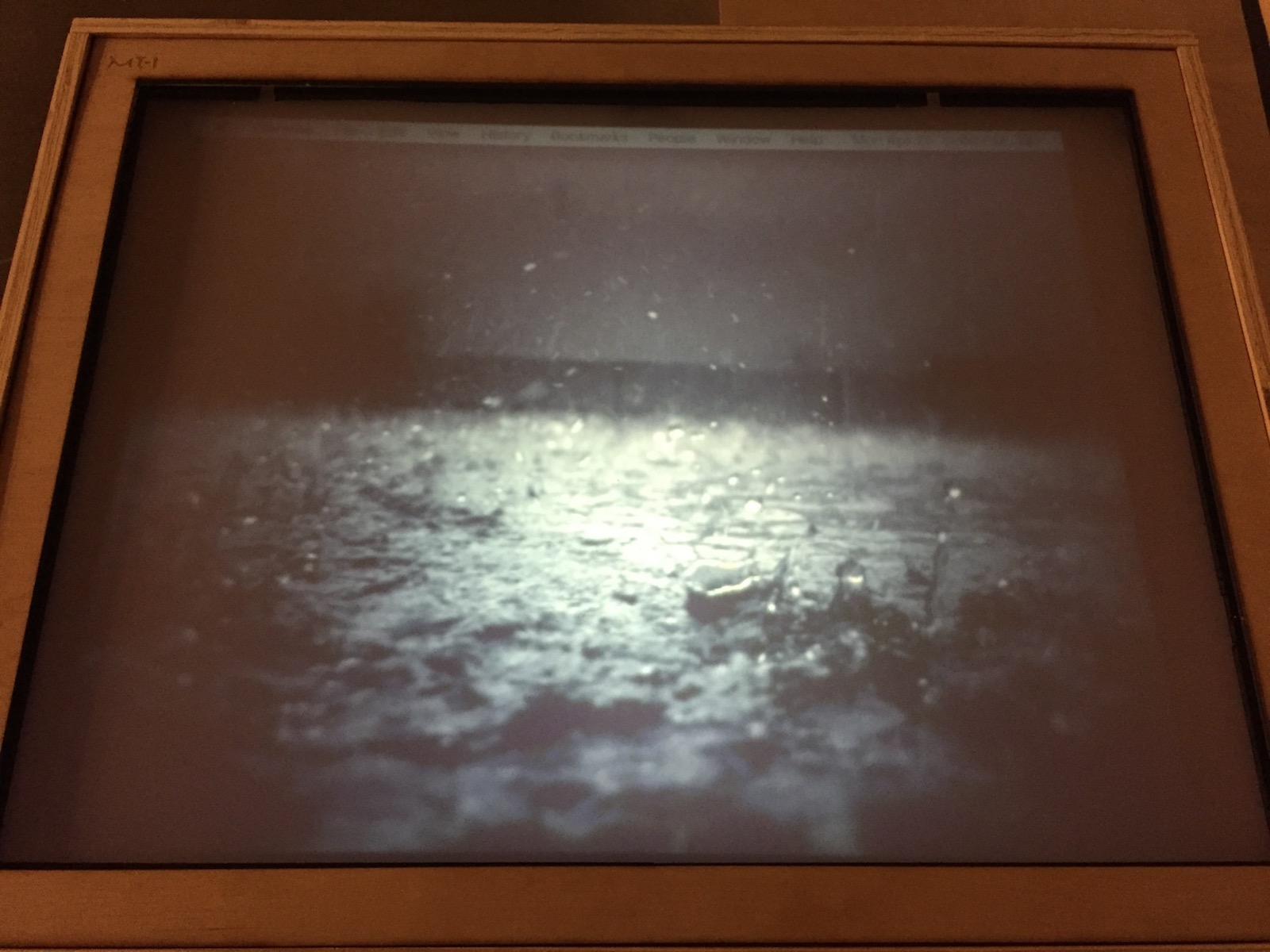

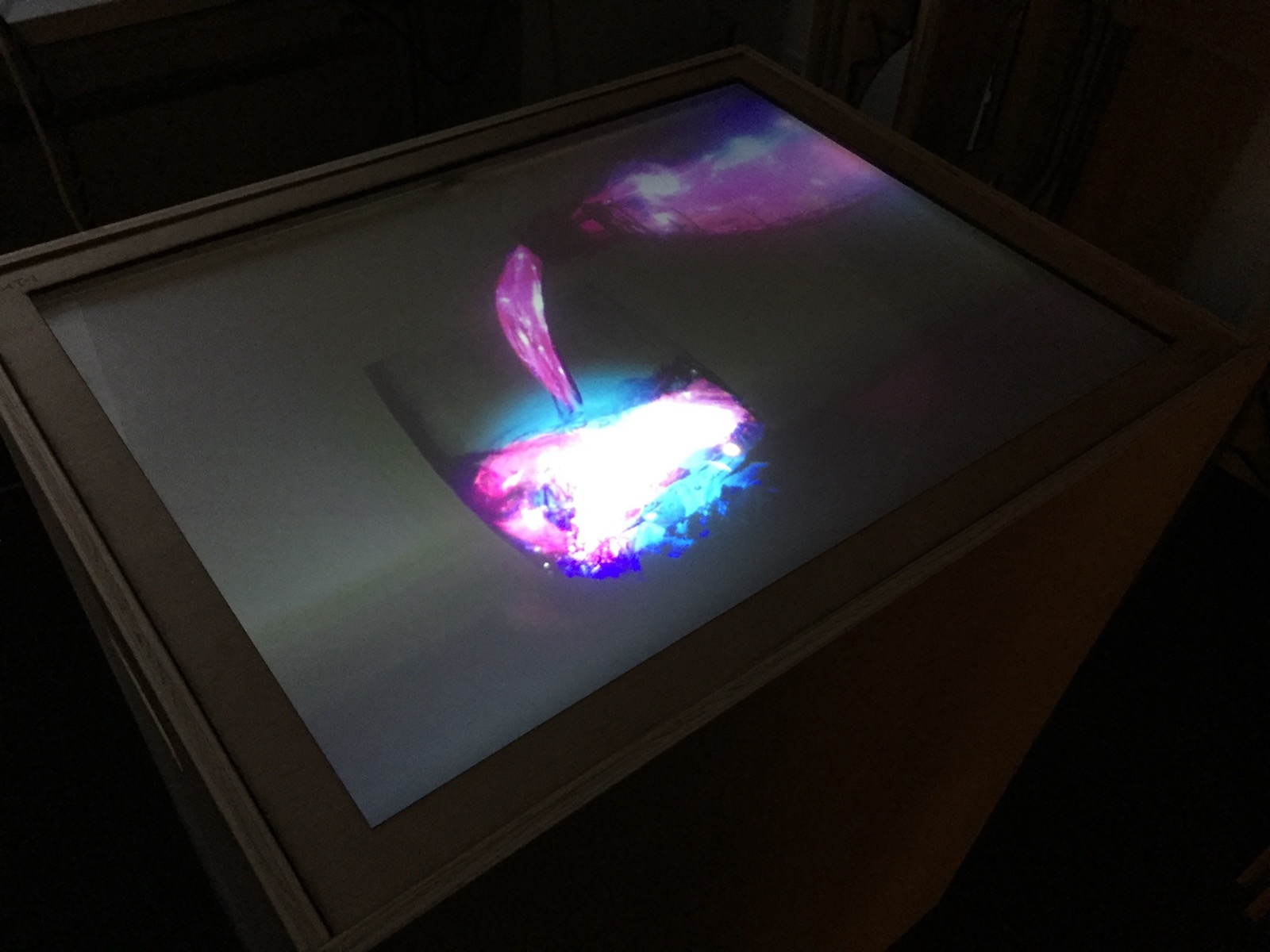

Testing IR edge lit and projection

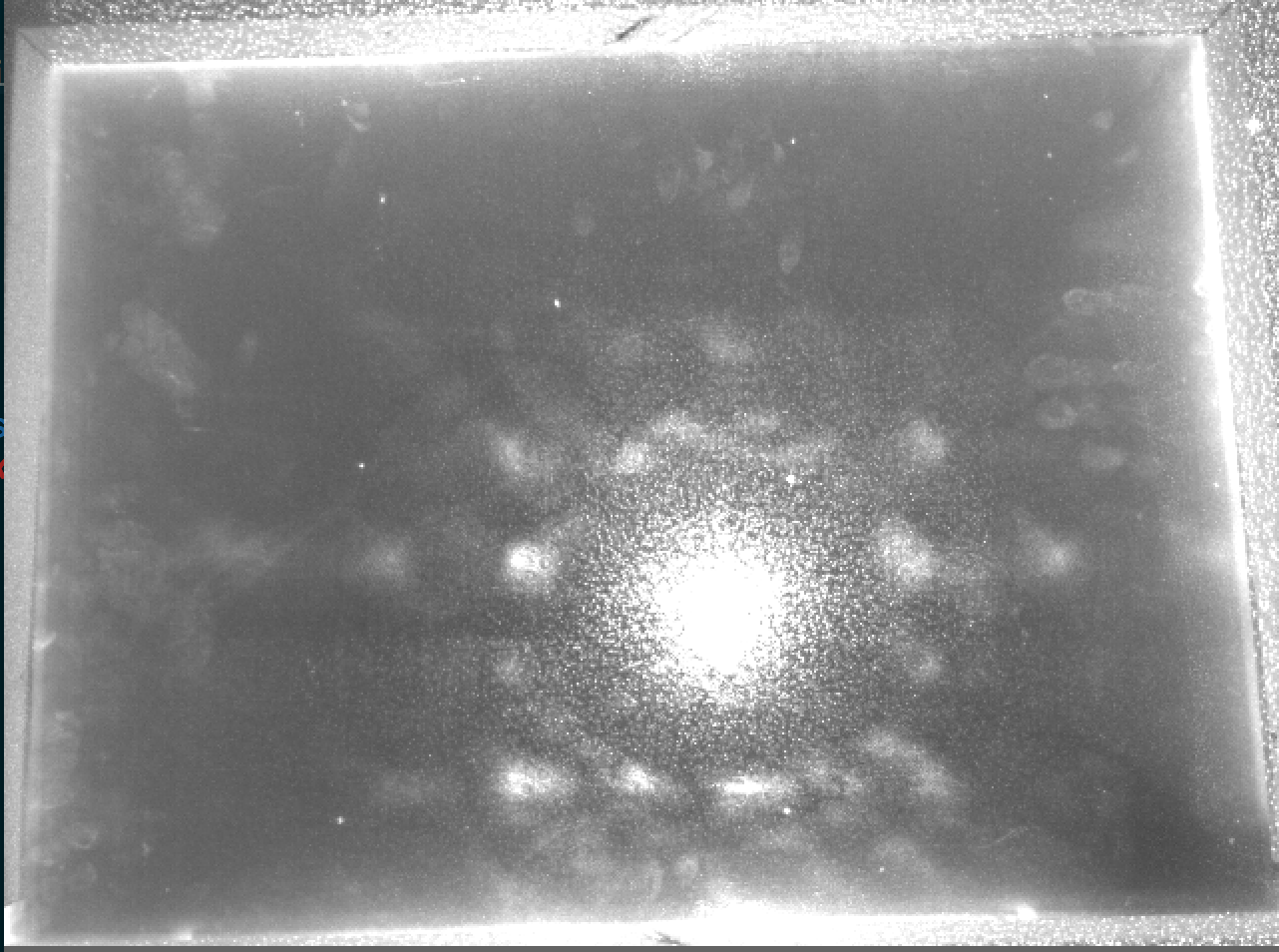

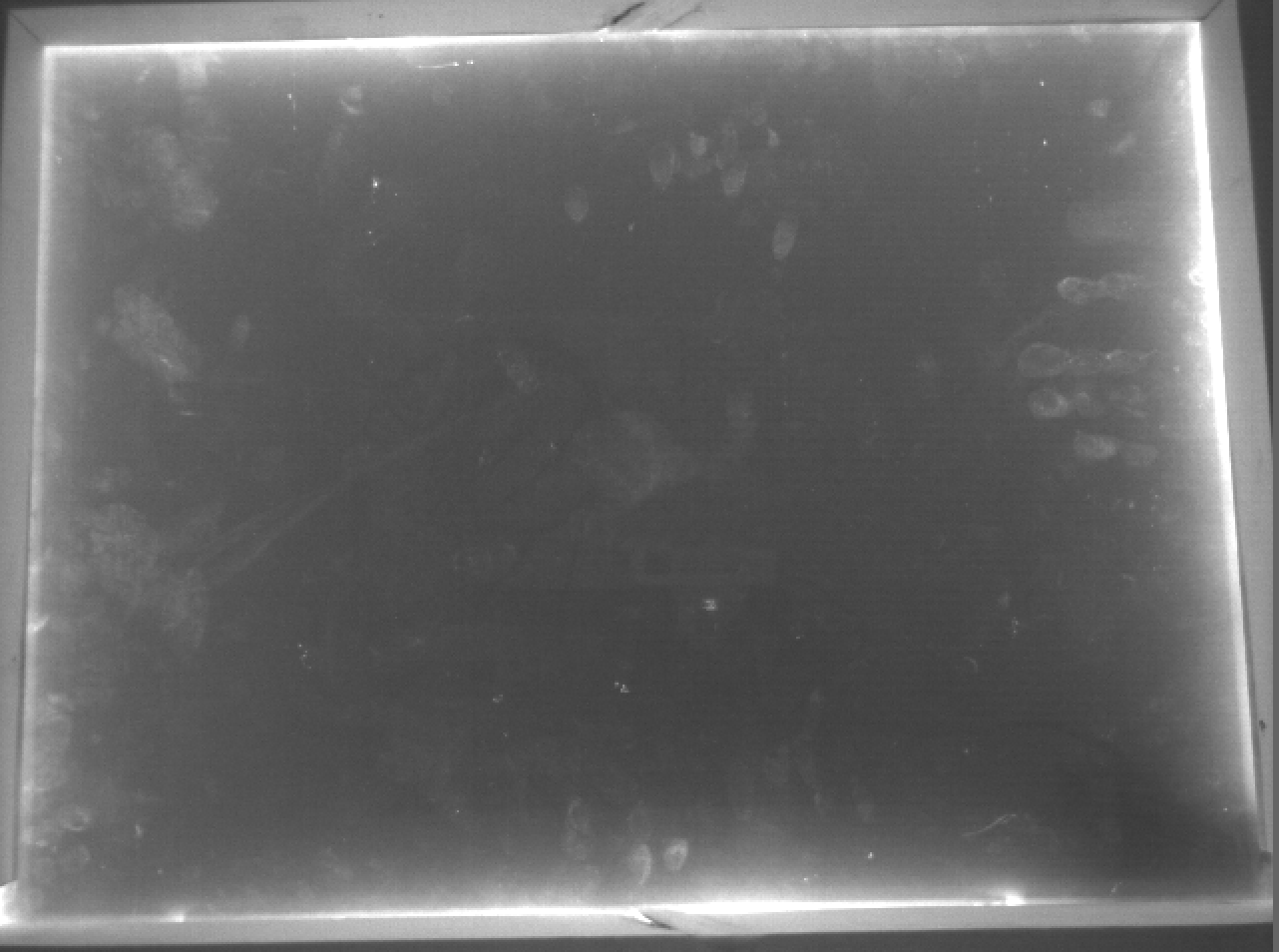

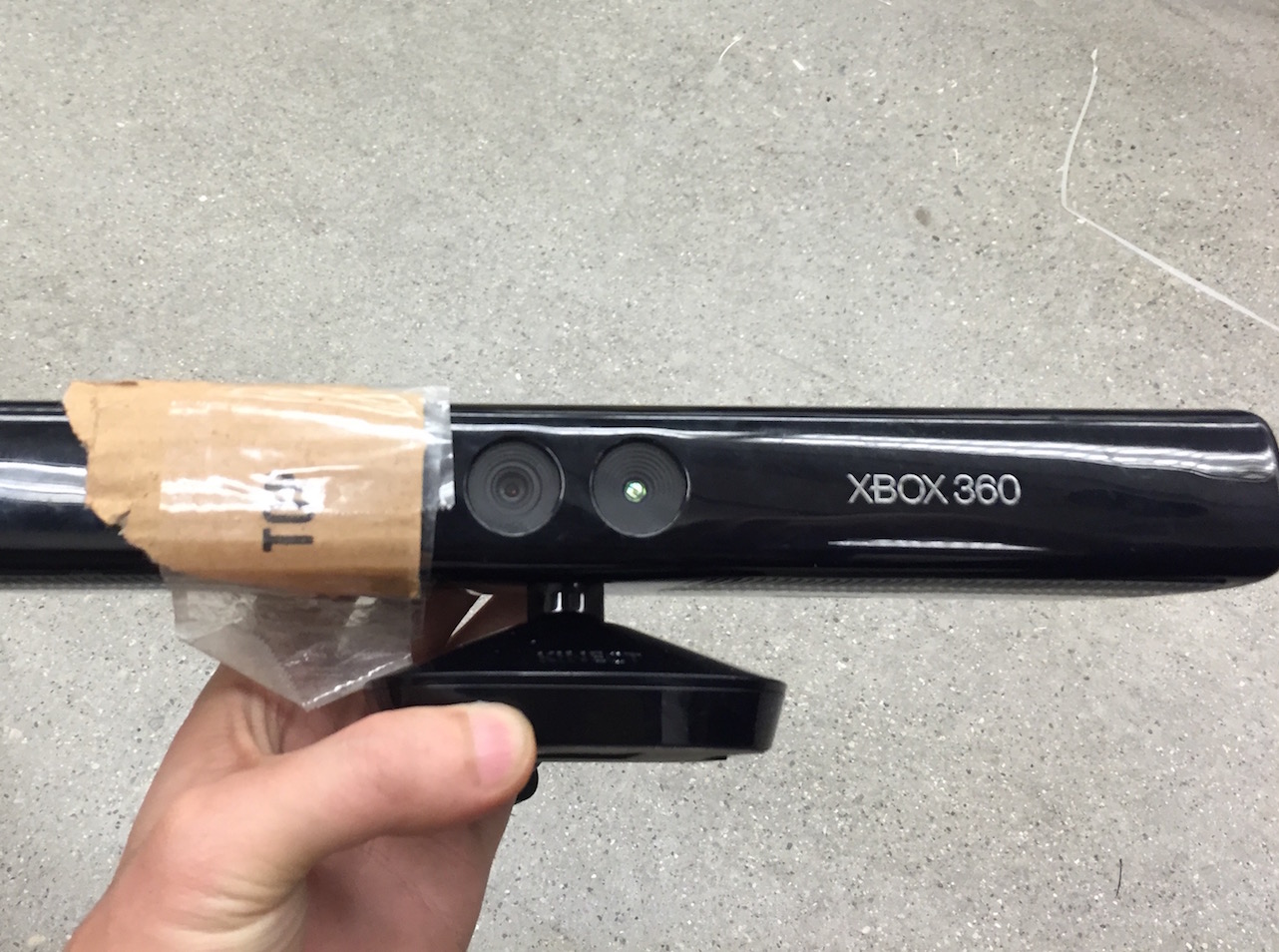

We use Kinect as an IR camera here. Kinect itself has an IR LED array that projects IR point clouds, which will interfere with the nicely diffused IR light comes out from the IR LED strips, so we need to block that LED array. The image bellow shows the Kinect with LED array blocked, and the Kinect’s views with LED blocked and unblocked.

Making of the Table

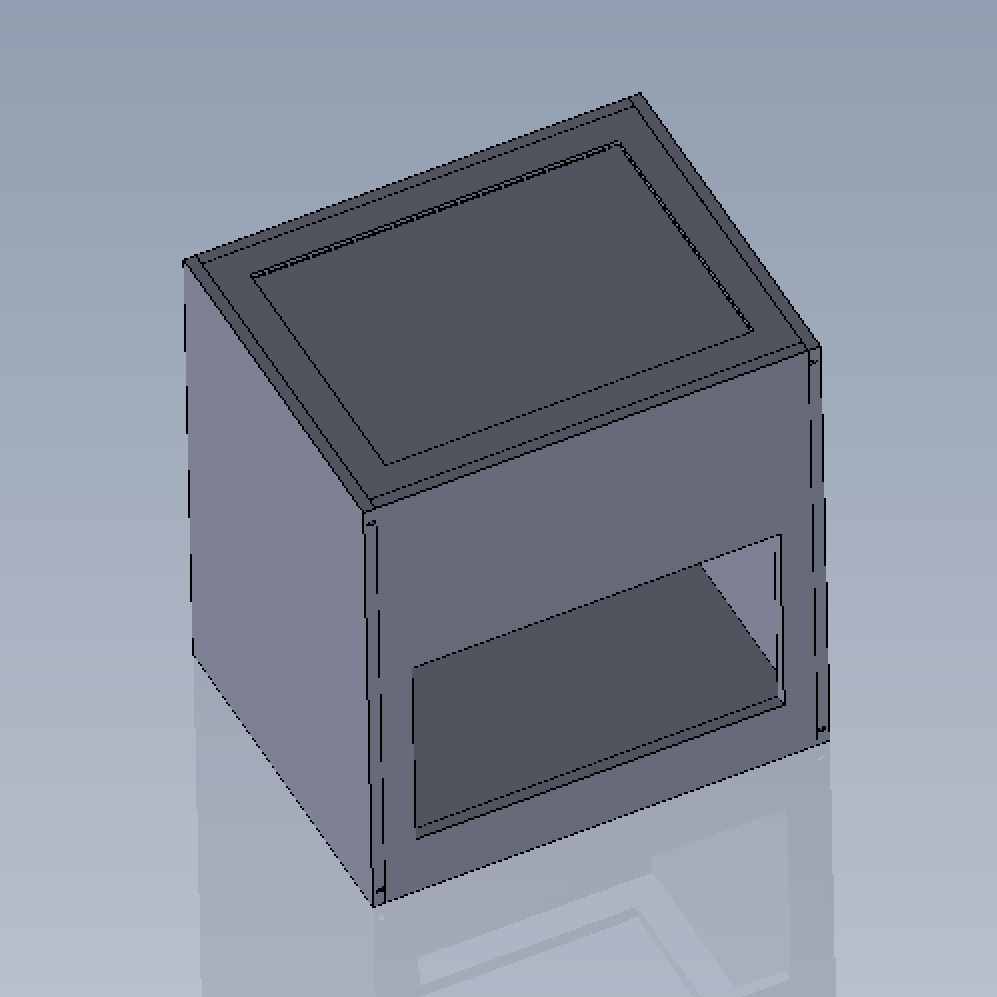

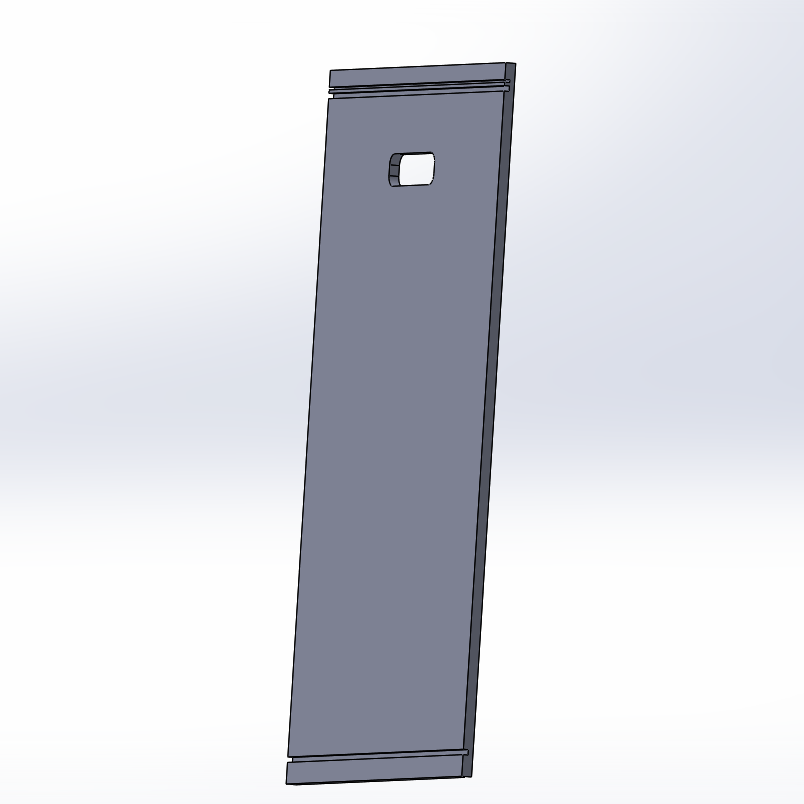

Models the table using SolidWorks

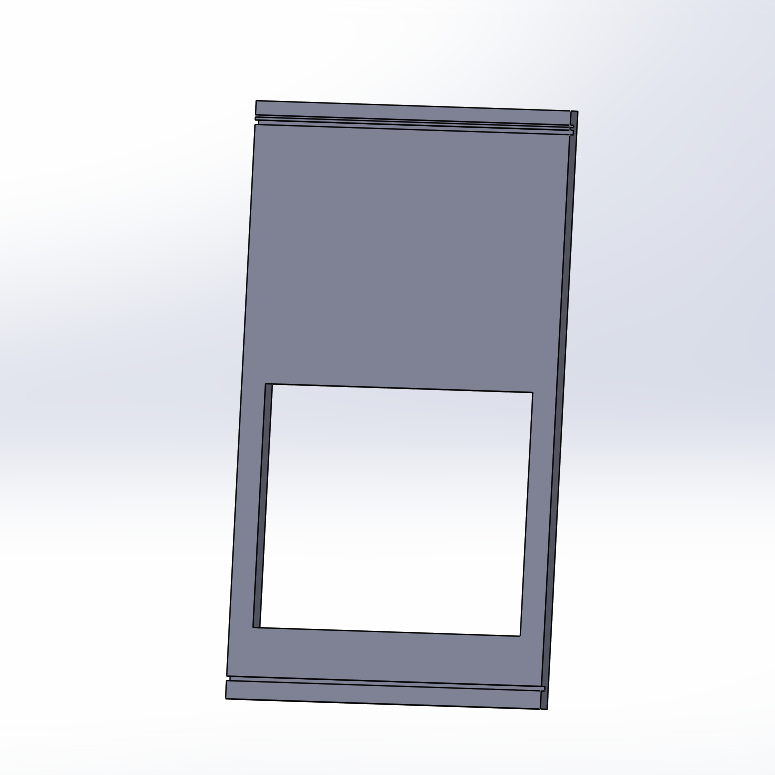

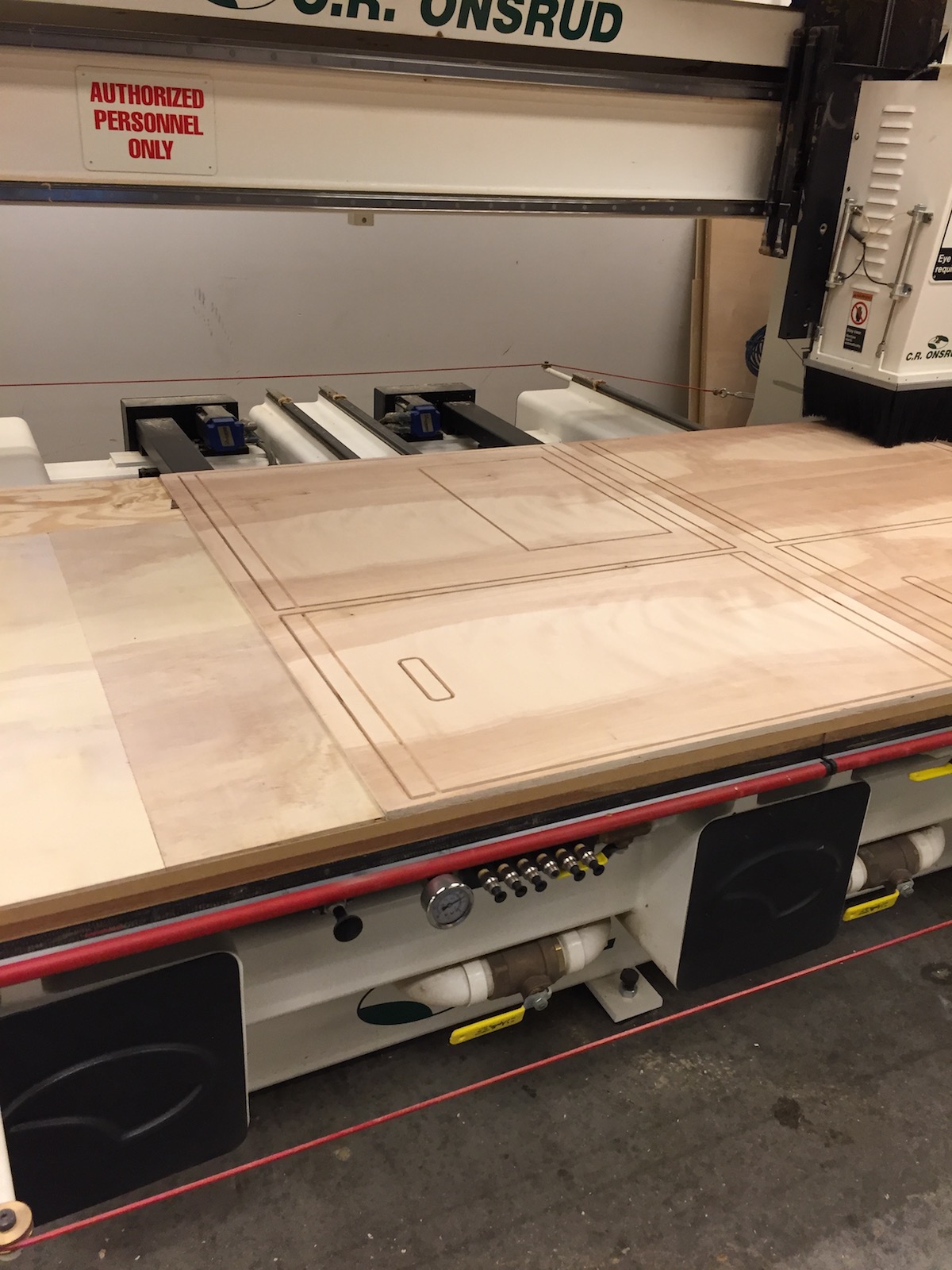

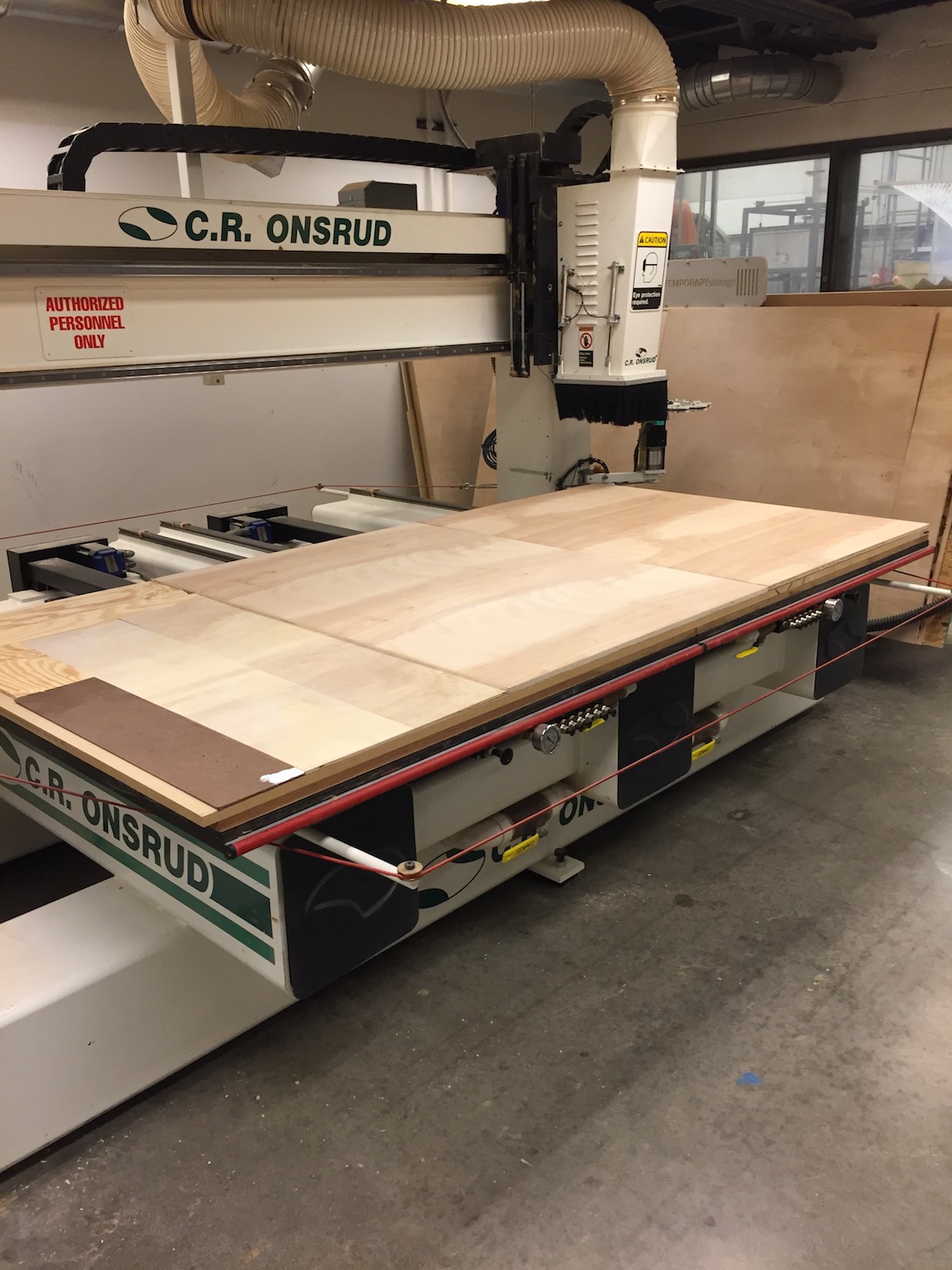

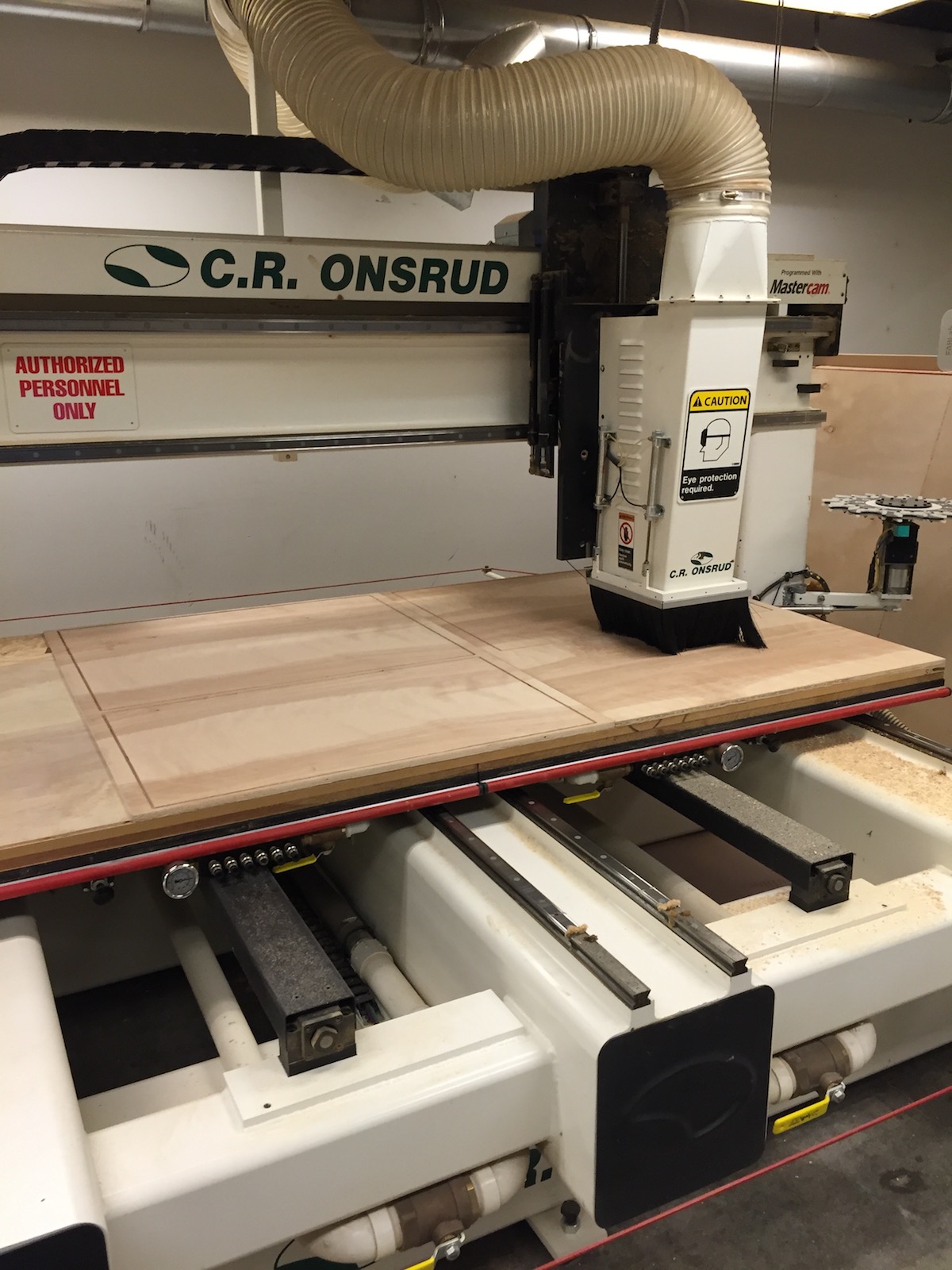

CNC Routes the sides

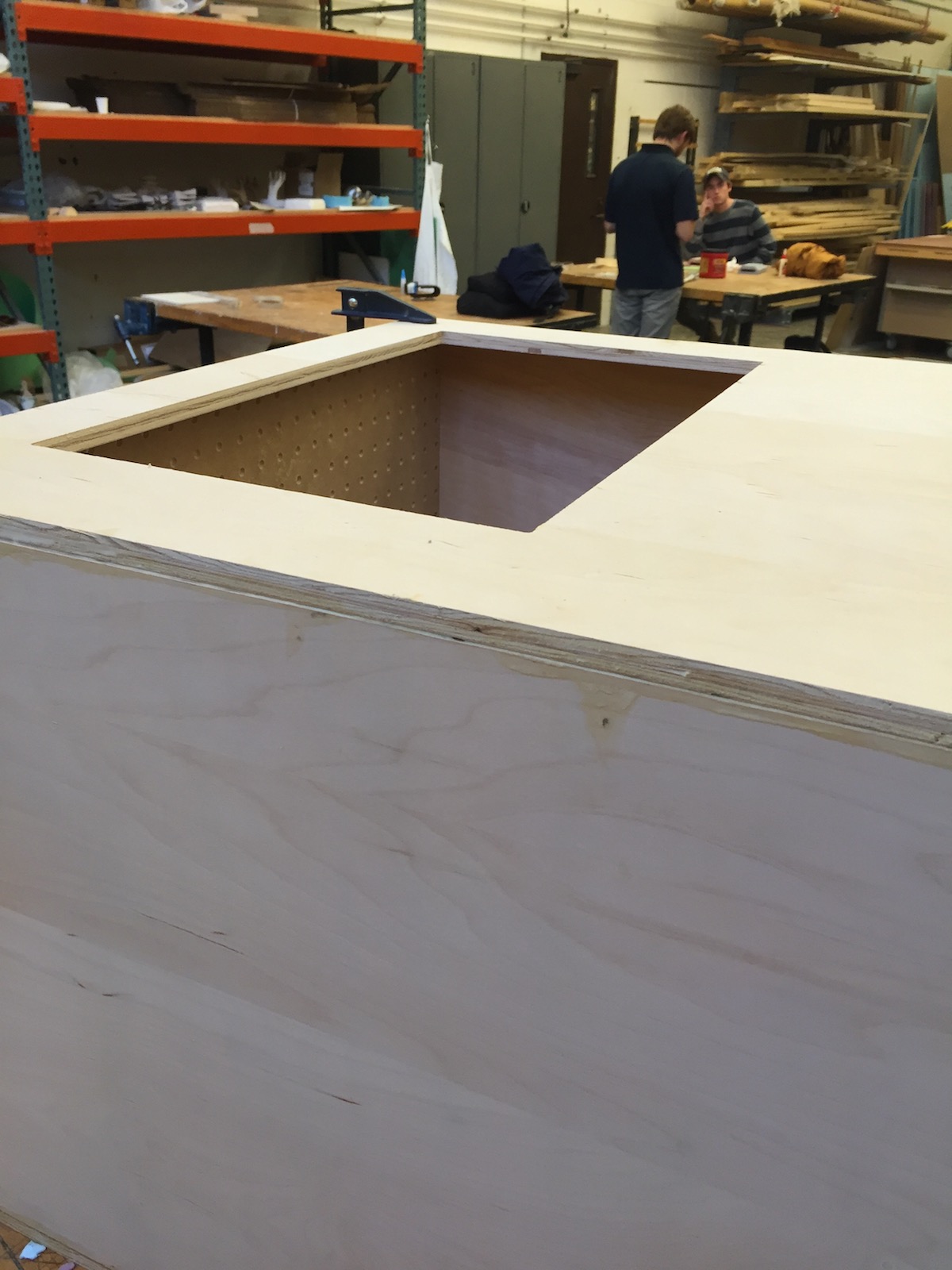

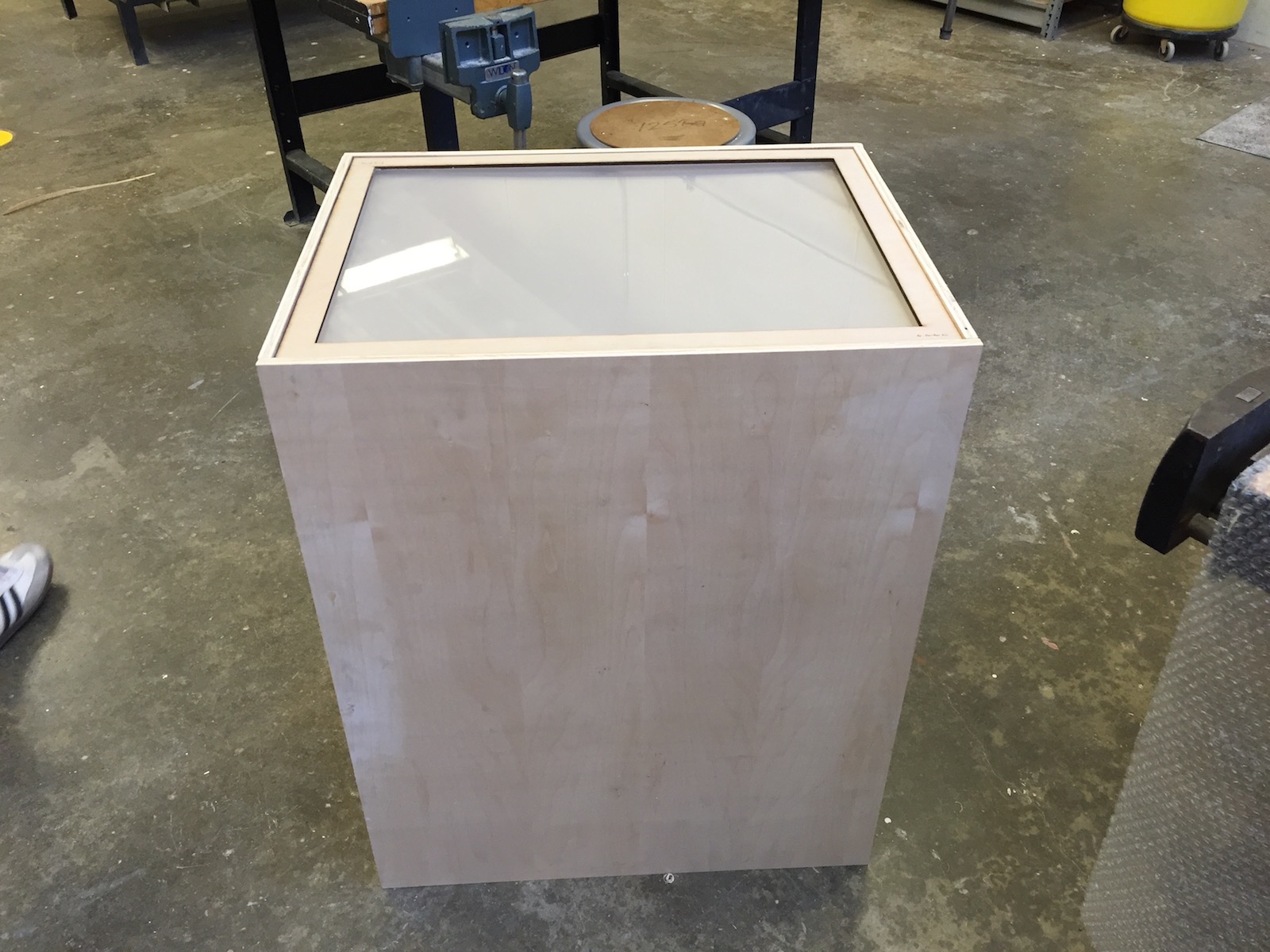

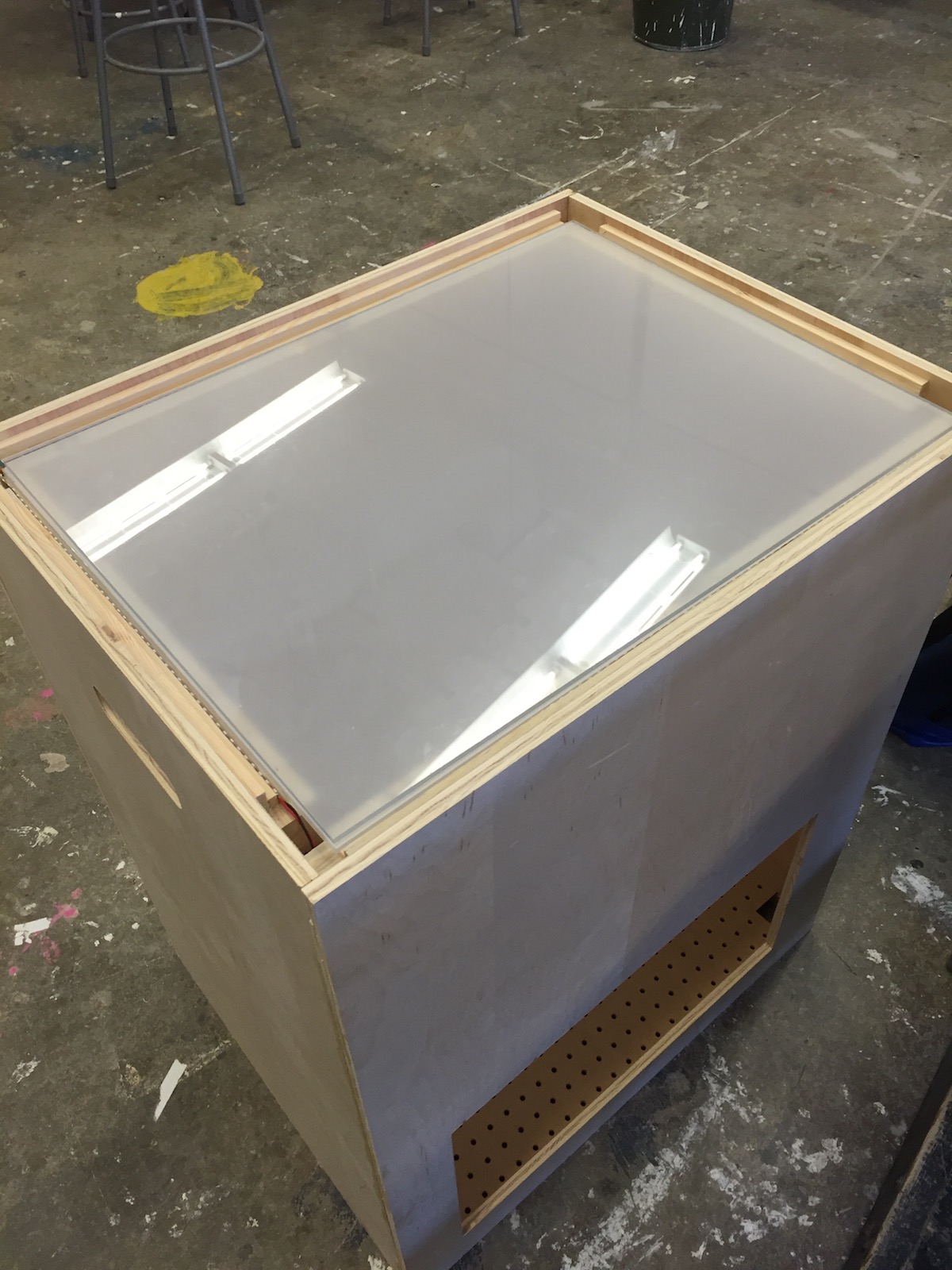

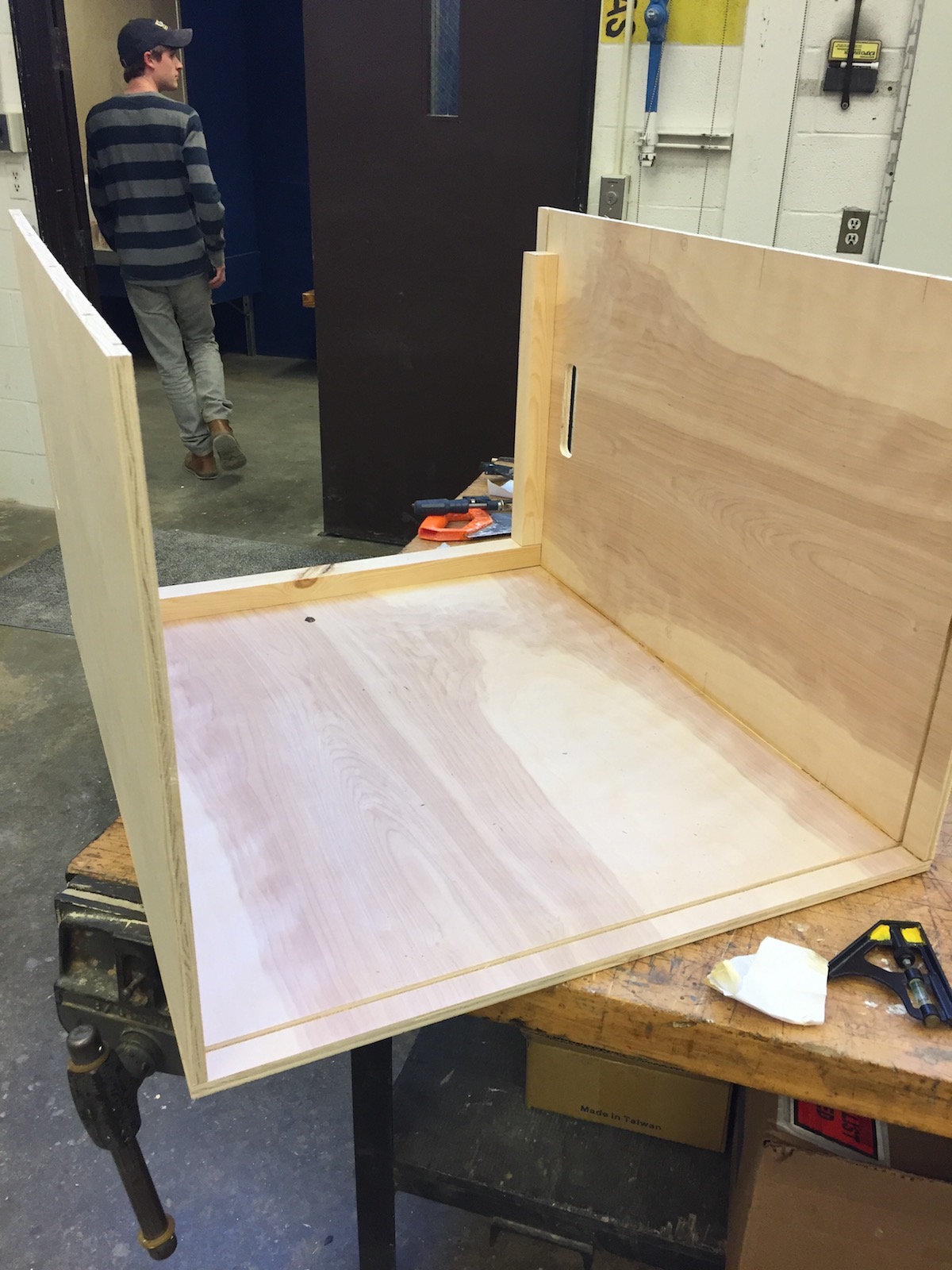

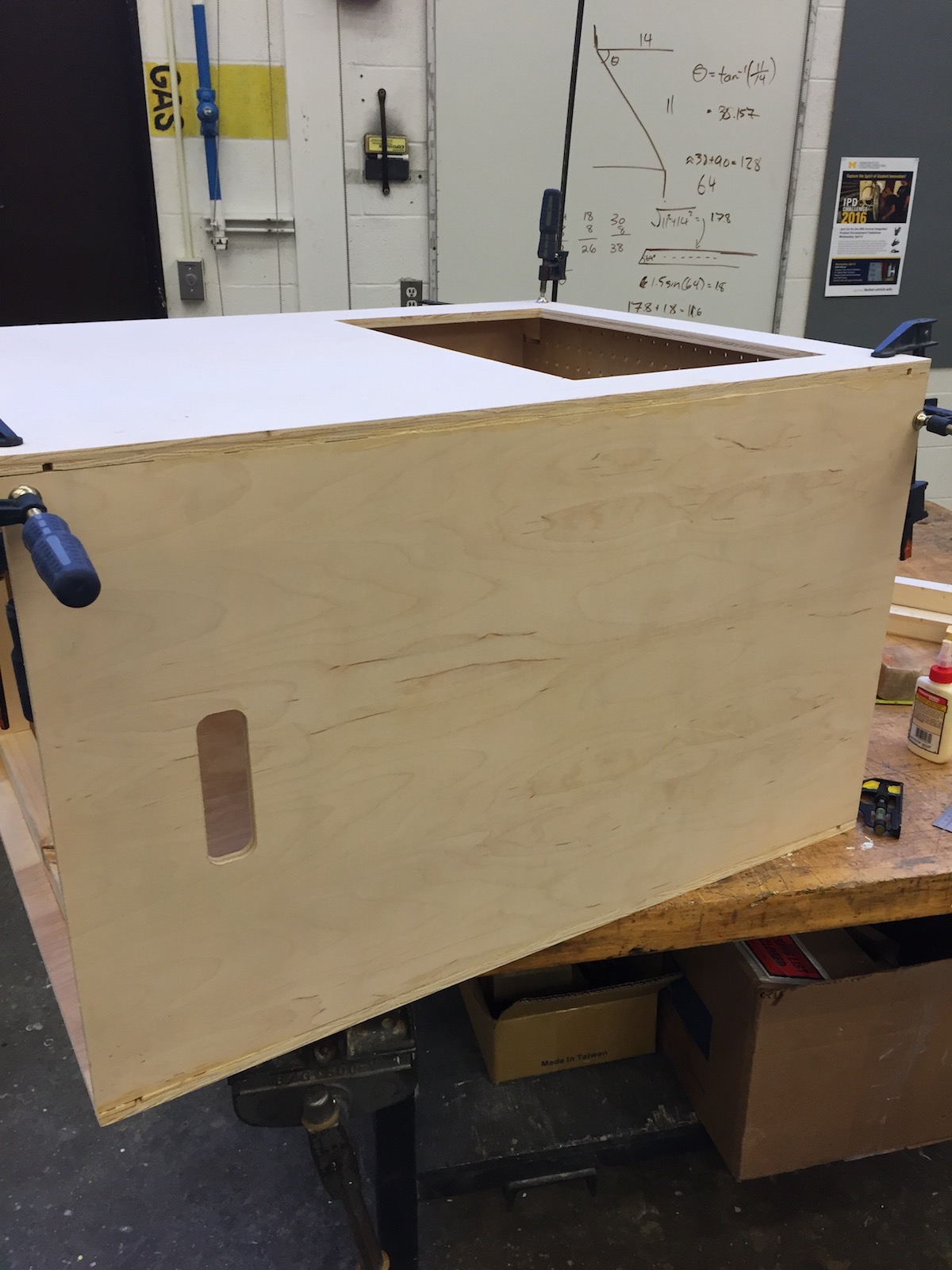

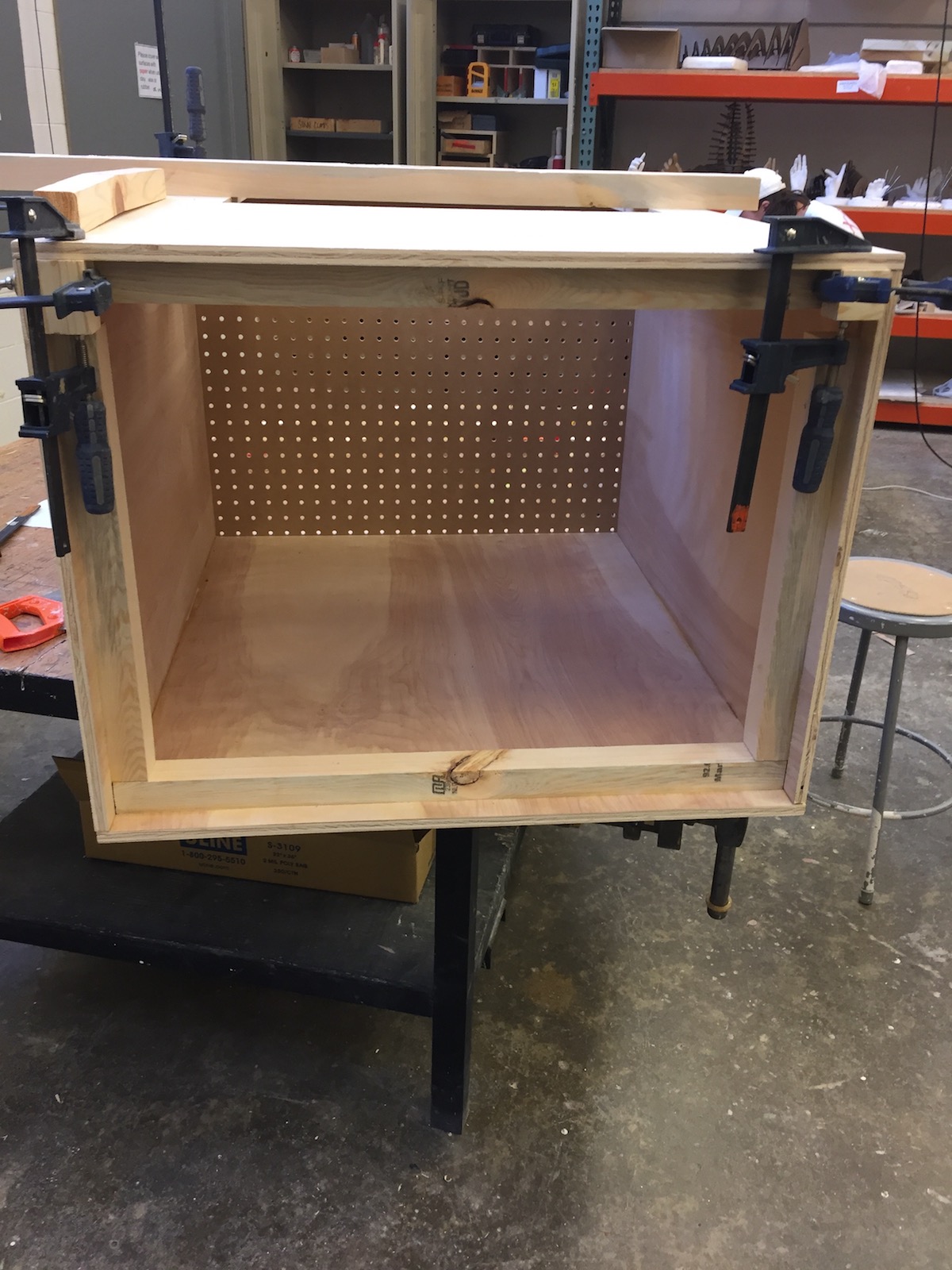

Assembling

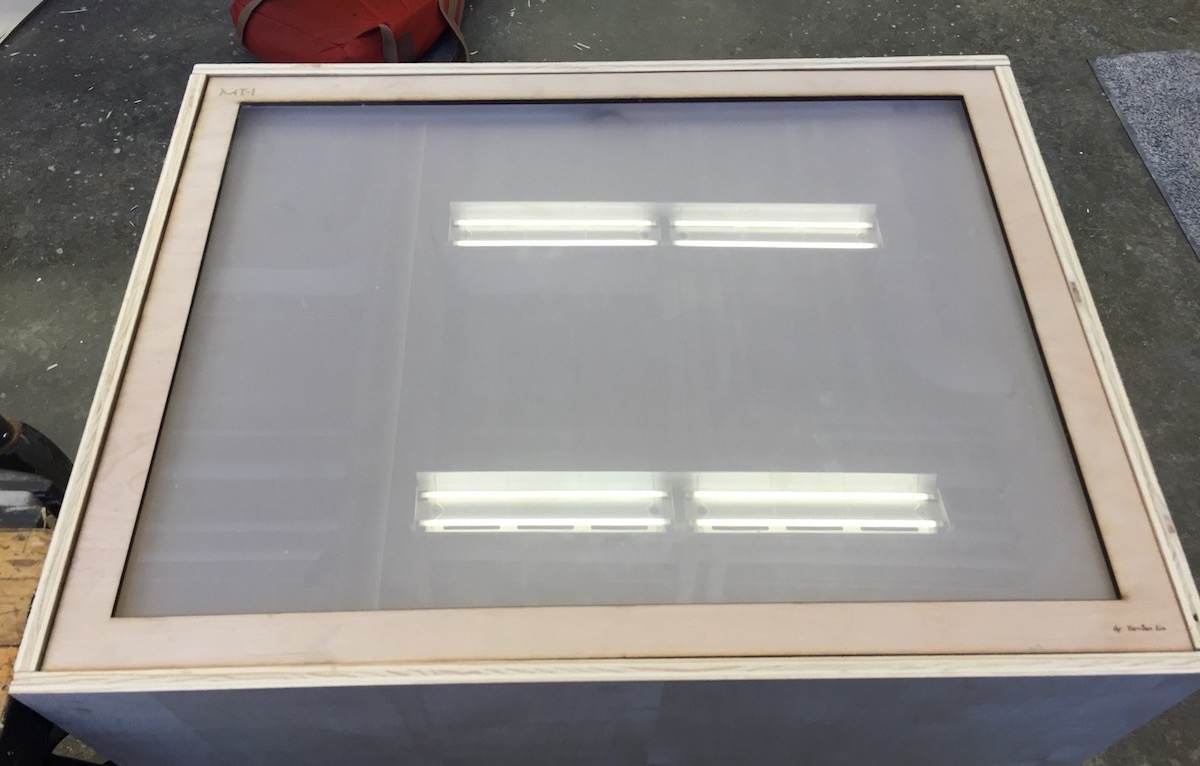

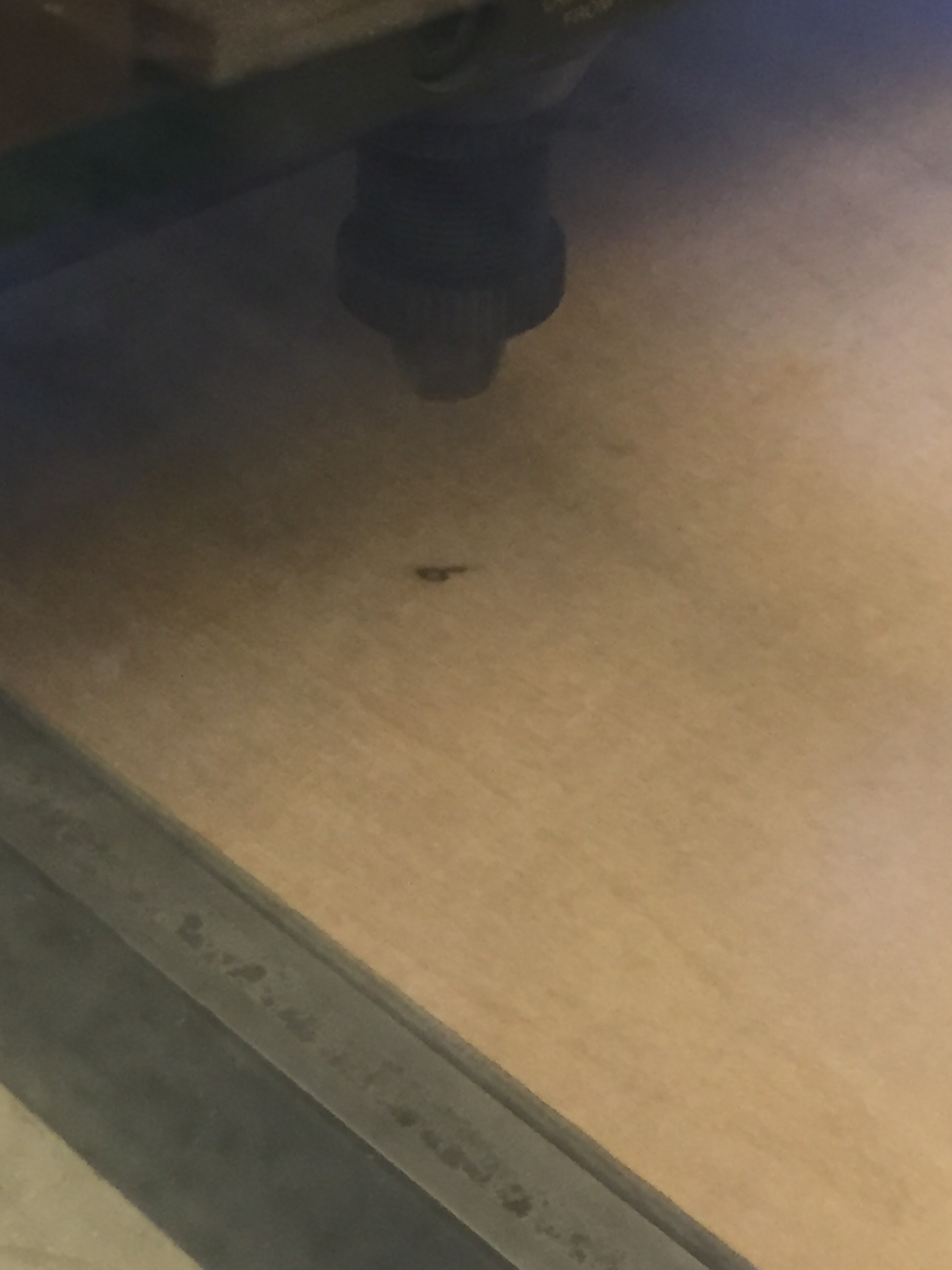

Laser Cuts the cover

Tracking Fingers and Objects

All of the code can be found on Github. I use openFrameworks with some other add-ons, including ofxFiducialTracker. The video shows the tracking result. For the fiducial tracker, the program can get the marker size and the orientation information as well.
